2021 Mazda 3 BaseFACTORY OEM SERVICE PROCEDURE

Sensor Cover Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)

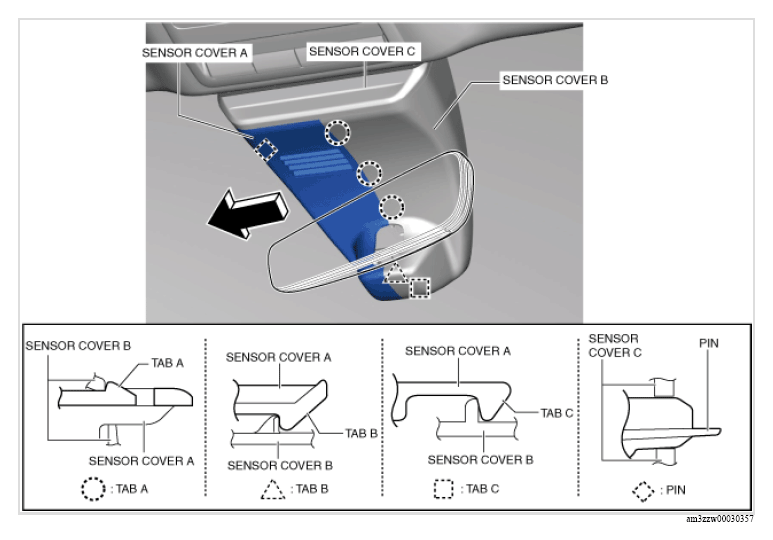

  2. Pull sensor cover A in the direction of the arrow shown in the figure and remove it while detaching the pin and tabs A, B, and C.
    G13178787Courtesy of MAZDA MOTORS CORP.

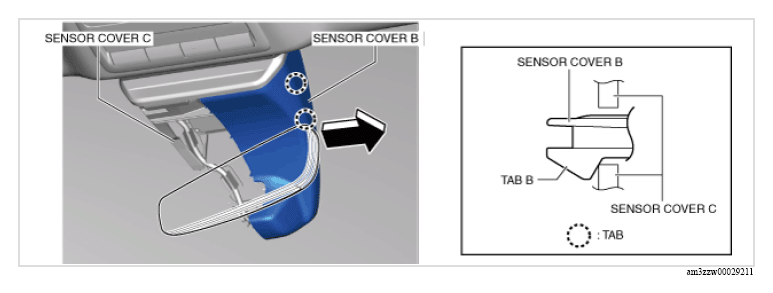

  3. Pull sensor cover B in the direction of the arrow shown in the figure and remove it while detaching the tabs.
    G13178788Courtesy of MAZDA MOTORS CORP.

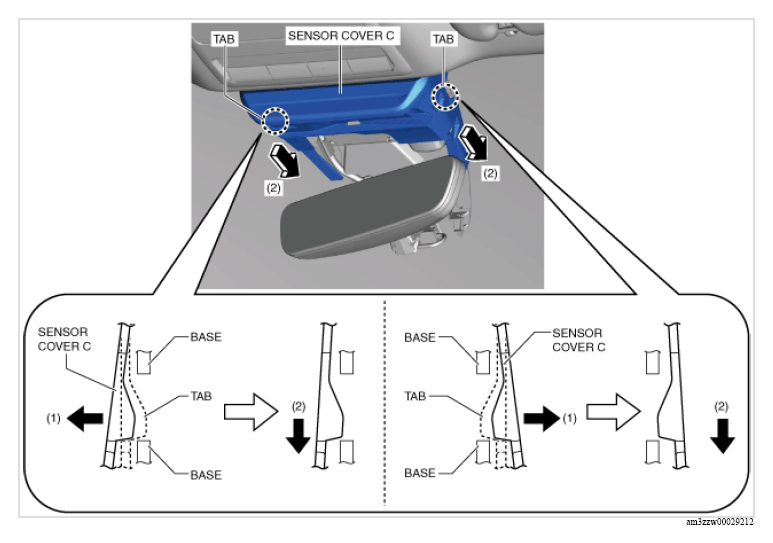

  4. Move the tabs in the direction of arrows (1) shown in the figure.
    G13178789Courtesy of MAZDA MOTORS CORP.

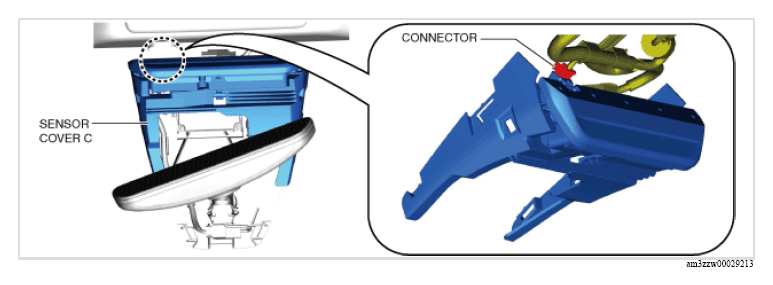

  5. Pull sensor cover C in the direction of arrows (2) shown in the figure and remove it and the indicator unit as a single unit while detaching the tabs.
  6. Disconnect the connector.
    G13178790Courtesy of MAZDA MOTORS CORP.
    NOTE:
  7. Install in the reverse order of removal.
