2021 Mazda 3 BaseFACTORY OEM SERVICE PROCEDURE

Power Window Sub Switch Removal/Installation: Front

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)

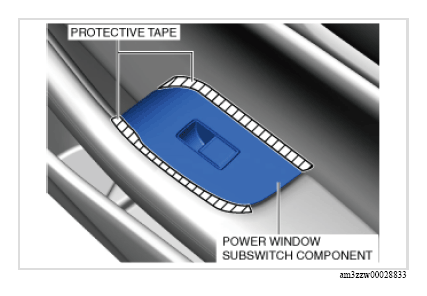

  2. Affix the protective tape to the position shown in the figure to prevent scratches and damage.
    G13178701Courtesy of MAZDA MOTORS CORP.

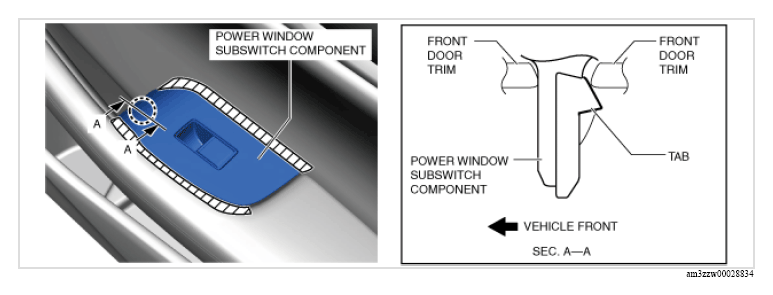

  3. Using a remover tool, remove the tab shown in the figure.
    G13178702Courtesy of MAZDA MOTORS CORP.

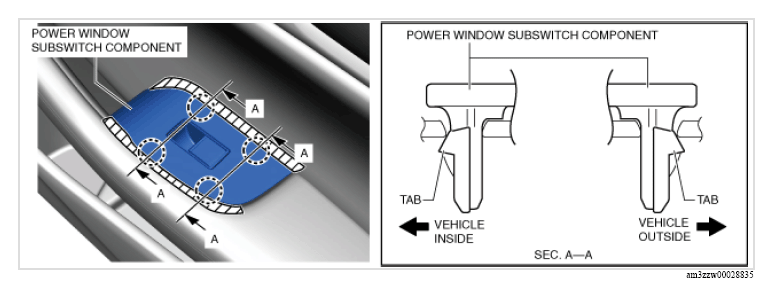

  4. Using a remover tool, remove the tabs shown in the figure.
    G13178703Courtesy of MAZDA MOTORS CORP.

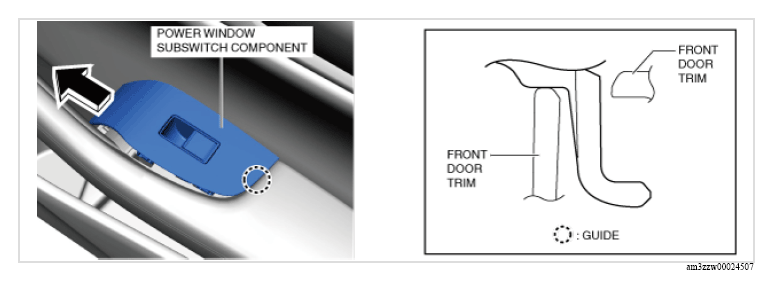

  5. Move the power window sub switch component in the direction of the arrow and detach the guide.
    G13178704Courtesy of MAZDA MOTORS CORP.

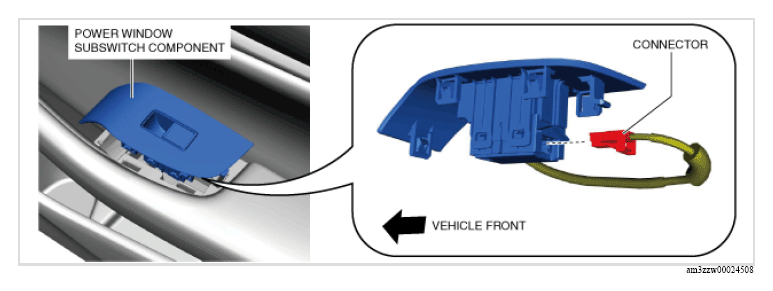

  6. Disconnect the connector.
    G13178705Courtesy of MAZDA MOTORS CORP.
  7. Remove the power window sub switch component from the front door trim.

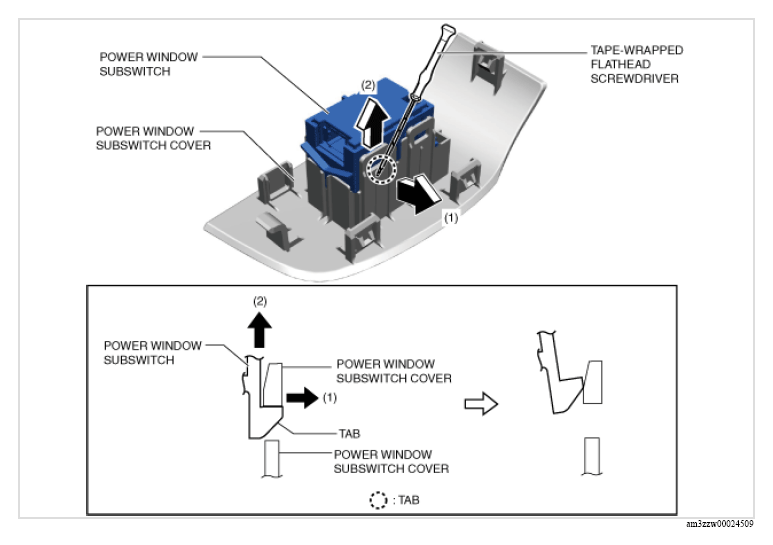

  8. Using a tape-wrapped flathead screwdriver, move the power window sub switch cover end in the direction of arrow (1) shown in the figure, and detach the tab while moving the power window sub switch in the direction of arrow (2).
    G13178706Courtesy of MAZDA MOTORS CORP.

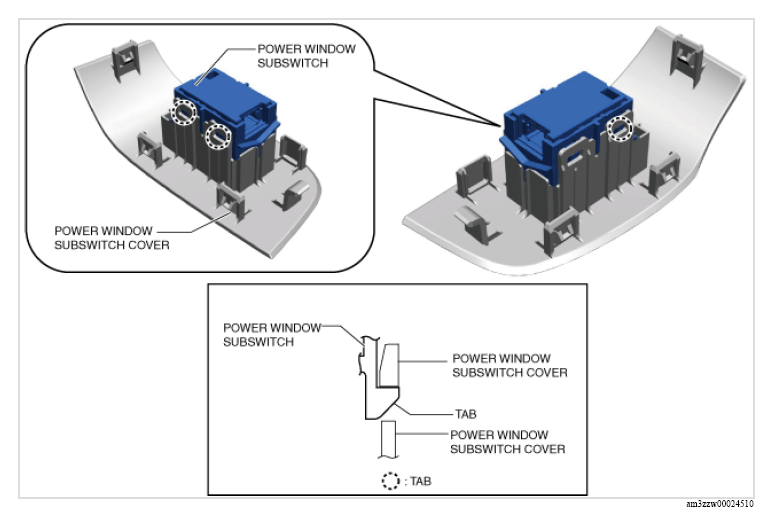

  9. Detach the tabs in the same manner as Step 8.
    G13178707Courtesy of MAZDA MOTORS CORP.
  10. Remove the power window sub switch from the power window sub switch cover.
  11. Install in the reverse order of removal.
