2021 Mazda 3 BaseFACTORY OEM SERVICE PROCEDURE

Front Power Window Regulator Installation Note

The front power window regulator installation work can be facilitated by performing the following procedure:

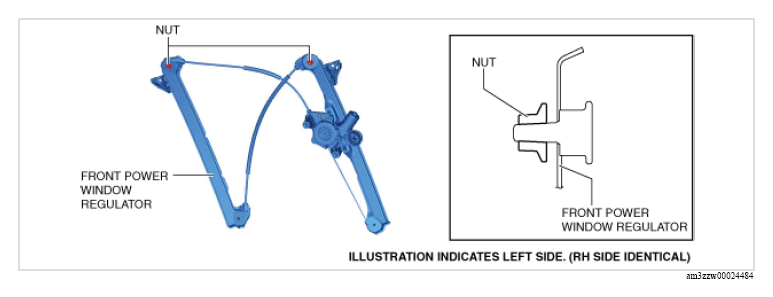

Temporarily tighten the nuts shown in the figure.

Courtesy of MAZDA MOTORS CORP.

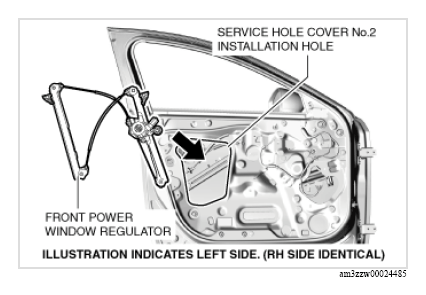

Insert the front power window regulator from the service hole cover No. 2 installation hole.

Courtesy of MAZDA MOTORS CORP.

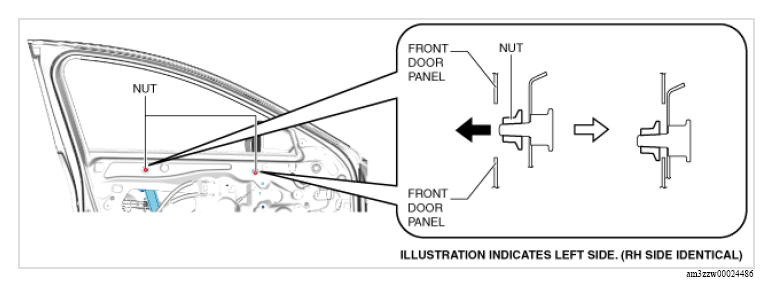

Hook the temporarily tightened nuts to the front door panel.

Courtesy of MAZDA MOTORS CORP.
