NOTE:

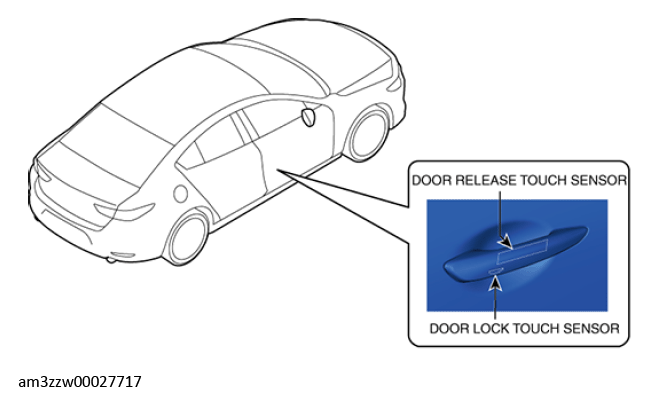

The integrity of the touch sensor cannot be determined from a single part. When inspecting the touch sensor, perform the following procedure.

Connect the M-MDS to the DLC-2.
Perform the DTC inspection for the BCM. (See DTC INSPECTION .)
- If DTCs are detected, repair the malfunctioning location according to the applicable DTC troubleshooting. (See DTC TABLE [BODY CONTROL MODULE (BCM) (US)] .)
- If DTCs are not detected, go to the next step.

Using the M-MDS, display the TOUCH_SEN_LCK_L/F, TOUCH_SEN_ULCK_L/F, TOUCH_SEN_LCK_R/F, TOUCH_SEN_ULCK_R/F for the LF control unit. (See PID/DATA MONITOR INSPECTION .)

Courtesy of MAZDA MOTORS CORP.

TEST CONDITION (LH)

Test condition	Data contents
Test condition	TOUCH_SEN_LCK_L/F	TOUCH_SEN_ULCK_L/F
Door lock touch sensor is touched	On	Off
Door release touch sensor is touched	Off	On
Except above	Off	Off

TEST CONDITION (RH)

Test condition	Data contents
Test condition	TOUCH_SEN_LCK_R/F	TOUCH_SEN_ULCK_R/F
Door lock touch sensor is touched	On	Off
Door release touch sensor is touched	Off	On
Except above	Off	Off

If not within the specification, replace the touch sensor. (See TOUCH SENSOR REMOVAL/INSTALLATION .)
