2021 Mazda 3 BaseFACTORY OEM SERVICE PROCEDURE
Android Auto™

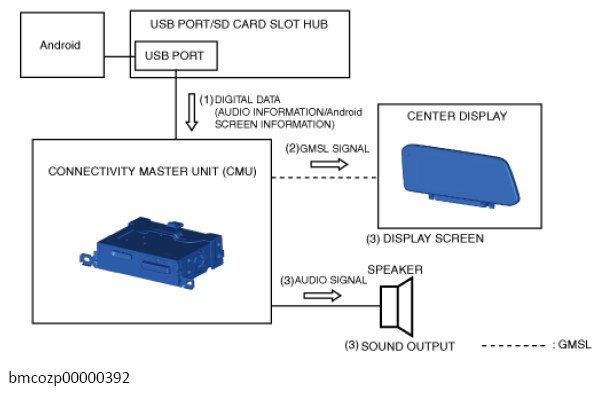

- The USB port/SD card slot hub sends (1) the digital data (audio information/Android™ screen information) of the Android™ connected to the USB port to the CMU.
- From the received digital data, the CMU converts the screen information to a GMSL signal and sends (2) it to the center display.
- The center display indicates (3) the screen information based on the GMSL signal received from the CMU. In addition, the CMU sends (3) the audio signal to the speakers and the speakers output (3) the audio based on the received audio signal.NOTE:
- Android Auto™ can be used only when Android™ is connected to USB1 (USB port indicated by 1 mark) of the USB port/SD card slot hub.
