2020 Mazda CX-30 Base, AWDFACTORY OEM SERVICE PROCEDURE

Reusing Windshield

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the following parts:
    1. Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
    2. Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION .)
    3. Windshield wiper motor (See WINDSHIELD WIPER MOTOR AND LINK REMOVAL/INSTALLATION .)
    4. Front fender moulding (See FRONT FENDER MOULDING REMOVAL/INSTALLATION .)
    5. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION (US) .)
    6. Sun visor (See SUN VISOR REMOVAL/INSTALLATION .)
    7. Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION (US) .)
    8. Assist handle (front) (See ASSIST HANDLE REMOVAL/INSTALLATION .)
    9. Sensor cover (See SENSOR COVER REMOVAL/INSTALLATION .)
  3. Disconnect the rain sensor connector. (See RAIN SENSOR REMOVAL/INSTALLATION .)
  4. Disconnect the forward sensing camera (FSC) connector. (with forward sensing camera (FSC)) (See FORWARD SENSING CAMERA (FSC) REMOVAL/INSTALLATION .)
  5. Disconnect the auto-dimming rear view mirror connector. (with auto-dimming rear view mirror) (See AUTO-DIMMING REAR VIEW MIRROR REMOVAL/INSTALLATION .)
  6. Set the headliner out of the way.
  7. Disconnect the windshield wiper de-icer connector. (with windshield wiper de-icer)
    G13560181Courtesy of MAZDA MOTORS CORP.
  8. Remove the windshield wiper de-icer wiring harness from the hooks. (with windshield wiper de-icer)
  9. Remove the wiring harness clip. (with windshield wiper de-icer)
  10. Apply protective tape along the edge of the body.
    CAUTION:
    • Overlap and adhere the protective tape to the corners to prevent damage.
    G13560182Courtesy of MAZDA MOTORS CORP.
    WARNING:
    • Always wear gloves when using a utility knife. Using a utility knife with bare hands can cause injury.
  11. Using a utility knife, cut the windshield moulding shown in the illustration.
    G13560183Courtesy of MAZDA MOTORS CORP.

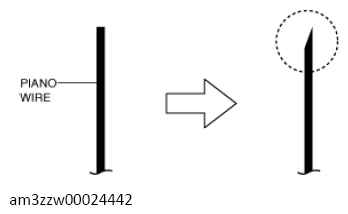

  12. Cut the tip of the piano wire diagonally.
    G13560184Courtesy of MAZDA MOTORS CORP.
    WARNING:
    • Using piano wire with bare hands can cause injury. Always wear gloves when using piano wire.

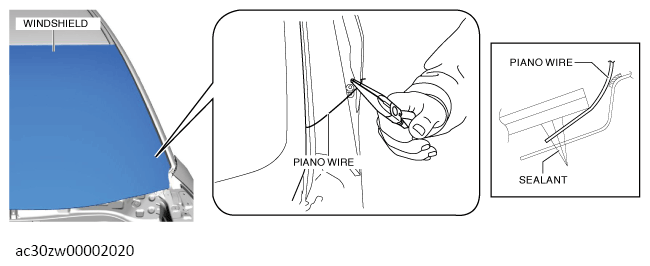

  13. Pass the piano wire through from the cabin side.
    G13560185Courtesy of MAZDA MOTORS CORP.
  14. Wind each end of piano wire around a bar.
    NOTE:
    • Use a long sawing action to spread the work over the whole length of piano wire to prevent it from breaking due to localized heating.

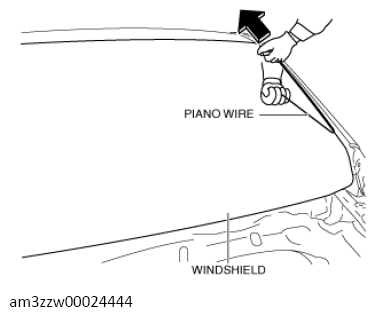

  15. Secure the piano wire on the cabin side, and pull the wire on the other side (vehicle exterior) in the direction of the arrow shown in the illustration to cut the windshield sealant.
    G13560186Courtesy of MAZDA MOTORS CORP.

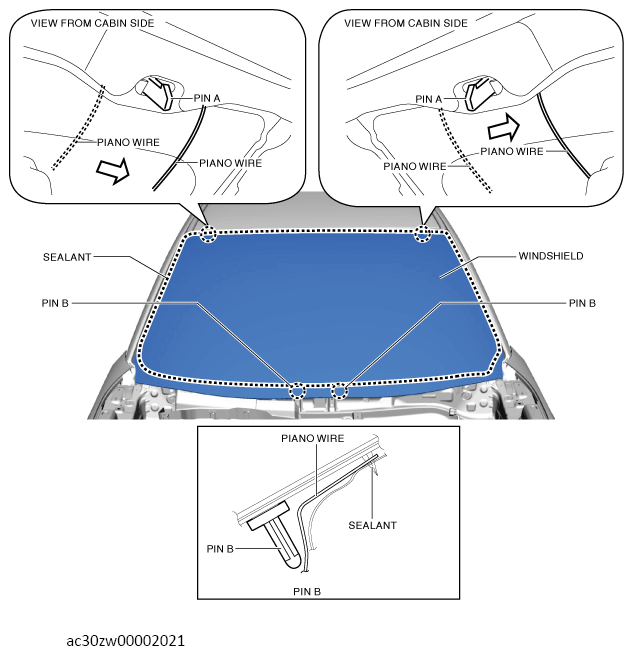

  16. Cut the sealant around the windshield.
    CAUTION:
    • After the piano wire reaches pin A position, pull out the piano wire and re-insert it at the position avoiding pin A.
    • After the piano wire reaches pin B position, cut the sealant while verifying that pin B and the piano wire do not contact each other.
    G13560187Courtesy of MAZDA MOTORS CORP.
  17. Secure one end of piano wire, and while pulling the other end, cut the sealant around the windshield.
  18. Pinch pin A from the inside of the vehicle and detach it from the body panel.
  19. Remove the windshield.
  20. When replacing pin B, remove pin B.
    NOTE:
    • Before removing pin B from the windshield glass, place an alignment mark on the windshield.
