2020 Mazda CX-30 Base, AWDFACTORY OEM SERVICE PROCEDURE

Rear Power Window Regulator Removal/Installation: Notes

NOTE:
  • The rear power window motor is integrated with the rear power window regulator.
  1. Perform the rear door glass preparation. (See REAR DOOR GLASS REMOVAL/INSTALLATION .)
  2. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  3. Remove the following parts:
    1. Power window sub switch (rear) (See POWER WINDOW SUB SWITCH REMOVAL/INSTALLATION .)
    2. Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION .)
    3. Rear inner handle (See INNER HANDLE REMOVAL/INSTALLATION .)
    4. Rear door glass (See REAR DOOR GLASS REMOVAL/INSTALLATION .)

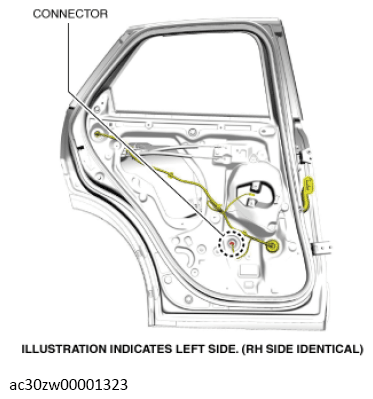

  4. Disconnect the connector.
    G13560137Courtesy of MAZDA MOTORS CORP.

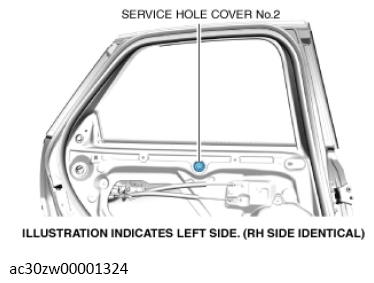

  5. Remove service hole cover No. 2.
    G13560138Courtesy of MAZDA MOTORS CORP.

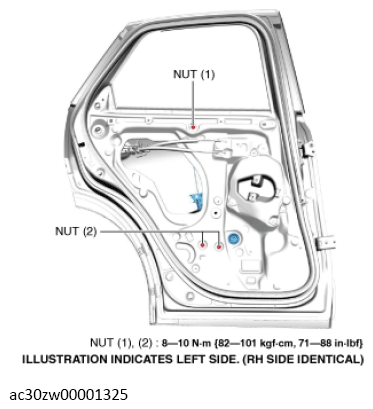

  6. Remove the nuts shown in the illustration in the order of (1) and (2).
    Fig 1: Rear Power Window Nuts With Torque Specification
    G13560139Courtesy of MAZDA MOTORS CORP.

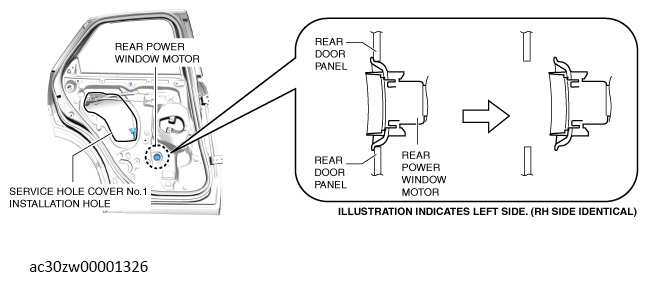

  7. Insert a hand from the service hole cover No. 1 installation hole and remove the rear power window motor from the rear door panel.
    G13560140Courtesy of MAZDA MOTORS CORP.

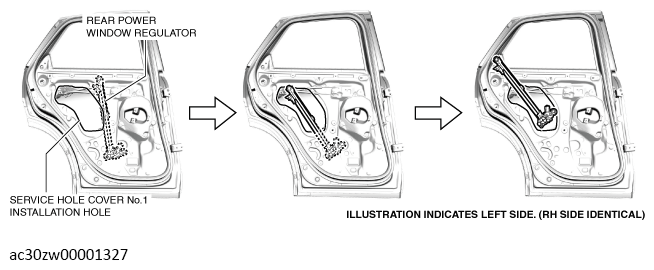

  8. Remove the rear power window regulator through the service hole cover No. 1 installation hole.
    CAUTION:
    • When removing the rear power window regulator, the rear power window regulator may contact the service hole cover No. 1 installation hole, and the coating film of the rear door inner panel and the rear power window regulator could be damaged. Remove the rear power window regulator while verifying that the rear power window regulator and the service hole cover No. 1 installation hole do not contact each other.
    G13560141Courtesy of MAZDA MOTORS CORP.
  9. Install in the reverse order of removal. (See REAR POWER WINDOW REGULATOR INSTALLATION NOTE .)
  10. Perform the POWER WINDOW SYSTEM INITIALIZATION PROCEDURE . (See POWER WINDOW SYSTEM INITIALIZATION PROCEDURE .)
