2020 Mazda CX-30 Base, AWDFACTORY OEM SERVICE PROCEDURE

Power Window Main Switch Removal/Installation

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)

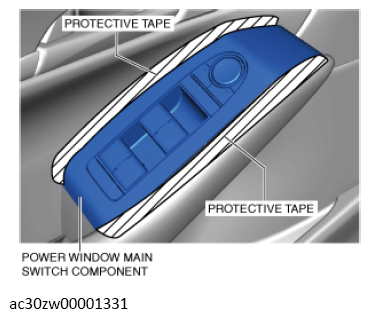

Affix the protective tape to the position shown in the illustration to prevent scratches and damage.

Courtesy of MAZDA MOTORS CORP.

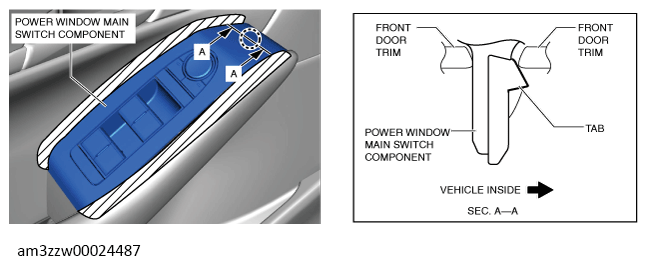

Using a remover tool, remove the tab shown in the illustration.

Courtesy of MAZDA MOTORS CORP.

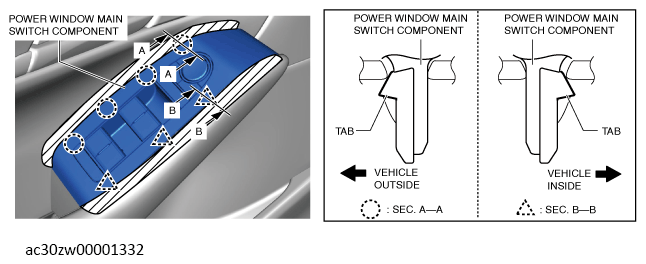

Using a remover tool, remove the tabs shown in the illustration.

Courtesy of MAZDA MOTORS CORP.

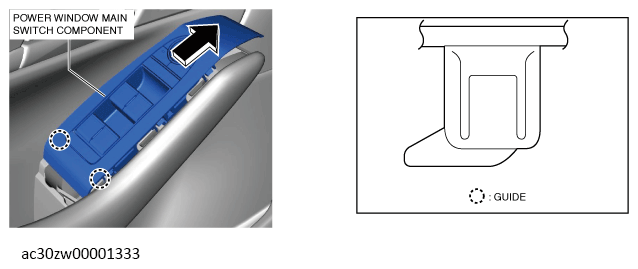

Move the power window main switch component in the direction of the arrow and detach the guides.

Courtesy of MAZDA MOTORS CORP.

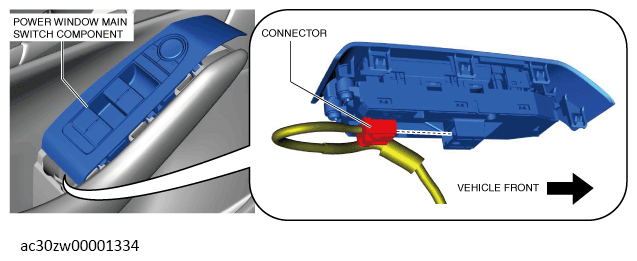

Disconnect the connector.

Courtesy of MAZDA MOTORS CORP.
Remove the power window main switch component from the front door trim.

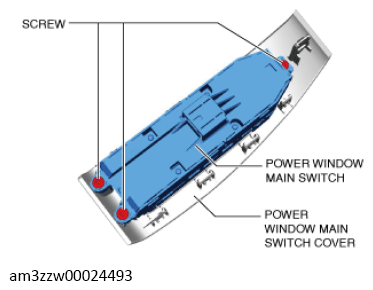

Remove the screws.

Courtesy of MAZDA MOTORS CORP.
Remove the power window main switch from the power window main switch cover.
Install in the reverse order of removal.
