2017 Mazda CX-5 Grand Select, AWDFACTORY OEM SERVICE PROCEDURE
Resistance Inspection: Notes
WARNING:
- A hot engine can cause severe burns. Turn off the engine and wait until it is cool before removing the ECT sensor.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the ECT sensor. (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION .)

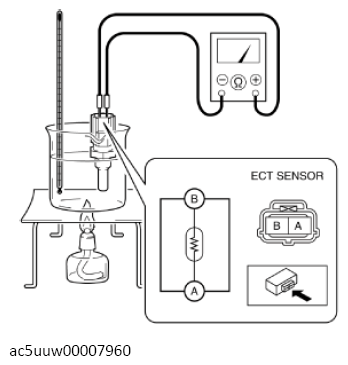

- Place the ECT sensor in water with a thermometer, and heat the water gradually.
- Measure the resistance between ECT sensor terminals A and B.
- If not as specified, replace the ECT sensor. (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION .)
