2017 Mazda CX-5 Grand Select, AWDFACTORY OEM SERVICE PROCEDURE
Except Engine Compartment

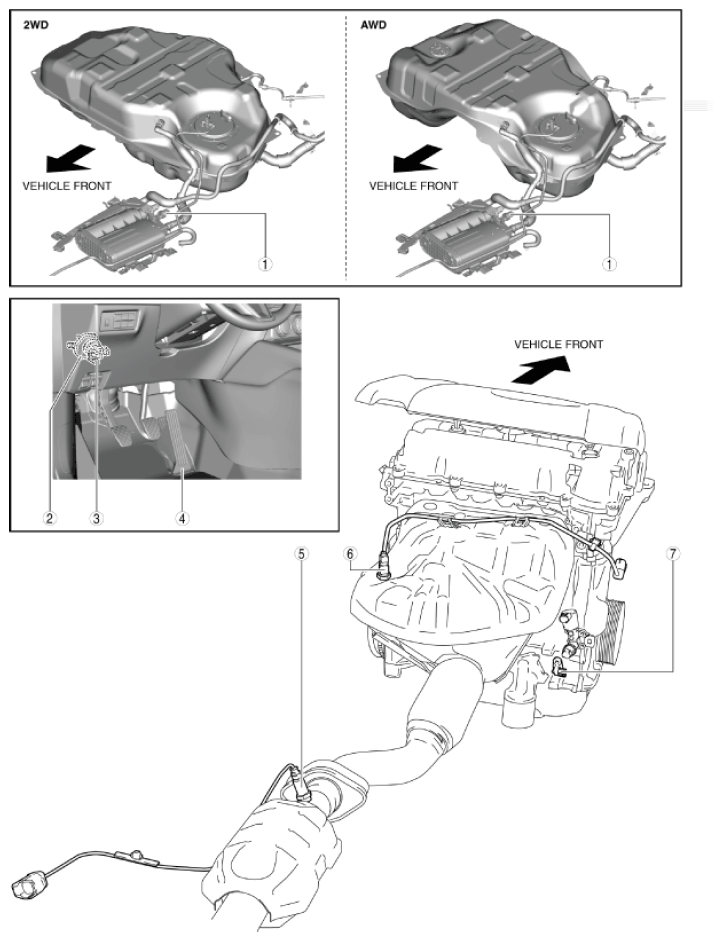

COMPONENT DESCRIPTION
| 1 | Fuel tank pressure sensor (U.S.A. and CANADA) (See FUEL TANK PRESSURE SENSOR REMOVAL/INSTALLATION .)) (See FUEL TANK PRESSURE SENSOR INSPECTION .) |
| 2 | Clutch stroke sensor (MTX) (See CLUTCH STROKE SENSOR INSPECTION .) |
| 3 | CPP switch (MTX) (See CLUTCH PEDAL POSITION (CPP) SWITCH INSPECTION .)) |
| 4 | APP sensor (See ACCELERATOR PEDAL POSITION (APP) SENSOR REMOVAL/INSTALLATION .)) (See ACCELERATOR PEDAL POSITION (APP) SENSOR INSPECTION .)) |
| 5 | H02S (See HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION .)) (See HEATED OXYGEN SENSOR (HO2S) INSPECTION .) |
| 6 | A/F sensor (See AIR FUEL RATIO (A/F) SENSOR REMOVAL/INSTALLATION .)) (See AIR FUEL RATIO (A/F) SENSOR INSPECTION .) |
| 7 | CKP sensor (See CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION .)) (See CRANKSHAFT POSITION (CKP) SENSOR INSPECTION .) |
