2017 Mazda 6 Grand TouringFACTORY OEM SERVICE PROCEDURE
Fuel Pump Control Module Removal/Installation
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
- Tip the rear seat back (LH). (See REAR SEAT BACK REMOVAL/INSTALLATION .)

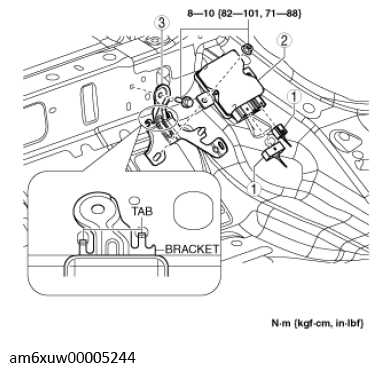

- Remove in the order indicated in the table.COMPONENT DESCRIPTION
1 Fuel pump control module connector 2 Fuel pump control module 3 Fuel pump control module bracket - Install in the reverse order of removal.
