2017 Mazda 5 GS, Automatic TransFACTORY OEM SERVICE PROCEDURE
Fuel Line Safety Procedure
- Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION .)
- Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION .)
- Remove the fuel-filler cap to release the pressure inside the fuel tank.

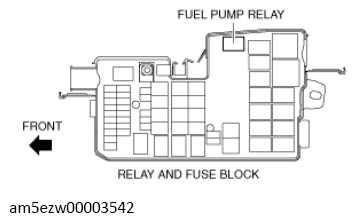

- Remove the fuel pump relay.
- Connect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION .)
- Start the engine.
- After the engine stalls, crank the engine 2-3 times.
- Switch the ignition to off.
- Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION .)
- Install the fuel pump relay.
