2017 Mazda 5 GS, Automatic TransFACTORY OEM SERVICE PROCEDURE
HO2S Inspection
- Warm up the engine to normal operating temperature.
- Access the following PIDs using the M-MDS. (See ON-BOARD DIAGNOSTIC TEST
.)
- VSS (Vehicle speed)
- RPM (Engine speed)
- O2S12 (HO2S output voltage)
- Drive the vehicle and decelerate the engine speed by releasing the accelerator pedal fully when the engine speed is 3, 000 rpm or more.

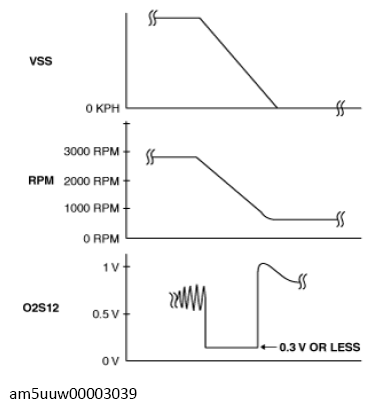

- Verify that the HO2S output voltage (PID: O2S12) is 0.3 V or less while decelerating as shown in the figure.
- If not as specified, replace the HO2S. (See HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION .)
