2017 Mazda 5 GS, Automatic TransFACTORY OEM SERVICE PROCEDURE

Starter Installation Note

NOTE:

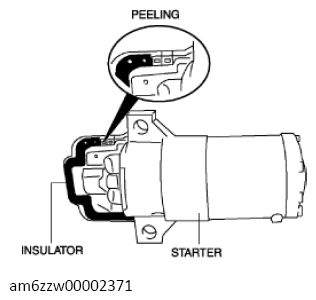

If the insulator is peeling or damaged, attach a new insulator using the following procedure:

Courtesy of MAZDA MOTORS CORP.

Peel off the insulator from the starter completely using a scraper.

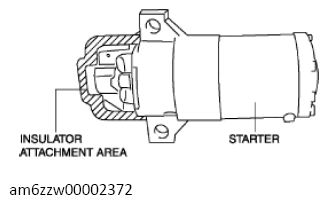

Degrease the insulator attachment area.

Courtesy of MAZDA MOTORS CORP.

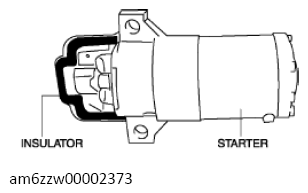

Attach a new insulator to the starter.

Courtesy of MAZDA MOTORS CORP.
