2016 Mazda 6 Grand TouringFACTORY OEM SERVICE PROCEDURE

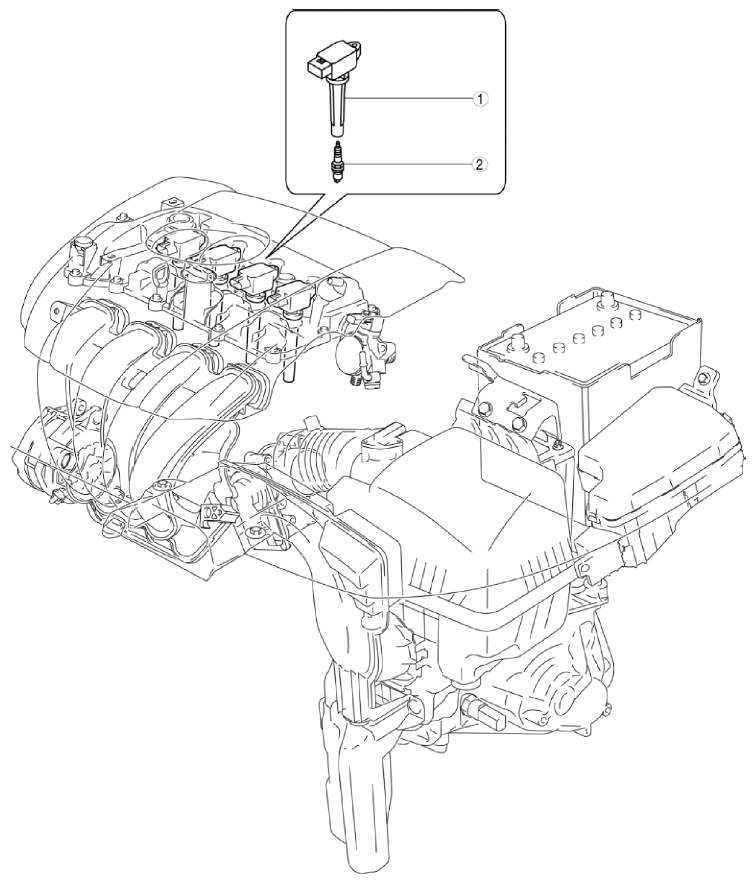

Ignition System Location Index
COMPONENT DESCRIPTION
| 1 | Ignition coil/ion sensor (See IGNITION COIL/ION SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5] .) (See IGNITION COIL INSPECTION [SKYACTIV-G 2.5] .) |
| 2 | Spark plug (See SPARK PLUG REMOVAL/INSTALLATION [SKYACTIV-G 2.5] .) (See SPARK PLUG INSPECTION [SKYACTIV-G 2.5] .) |
