2016 Mazda 5 GS, Automatic TransFACTORY OEM SERVICE PROCEDURE
Key Interlock Solenoid Inspection
CAUTION:
- Do not allow foreign material or water to penetrate the connector. Otherwise, it could cause poor contact and corrosion.
- Disconnect the key interlock solenoid connector.
- Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION .)
- Disconnect the negative battery cable.
- Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)

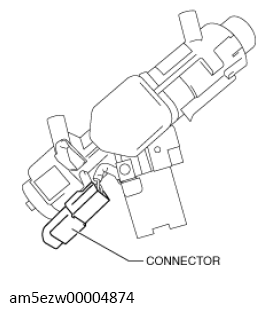

- Disconnect the key interlock solenoid connector.
- Measure the resistance between the key interlock solenoid terminals A and B.
- If there is any malfunction, replace the steering lock. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
Key Interlock Solenoid Resistance
32.4-39.6 ohm
