2016 Mazda 5 GS, Automatic TransFACTORY OEM SERVICE PROCEDURE
Pcm Removal/Installation
- Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION .)
- Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION .)
- Remove the PCM cover No. 1. (See BATTERY REMOVAL/INSTALLATION .)
- Disconnect the PCM connector.
- Remove the battery tray and PCM component. (See BATTERY REMOVAL/INSTALLATION .)

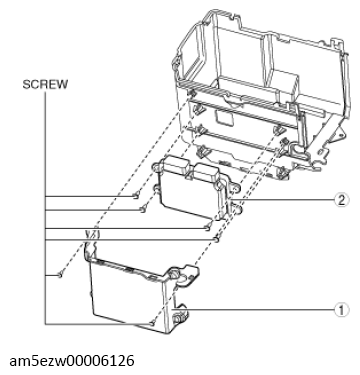

- Remove in the order indicated in the table.PART DESCRIPTION
1 PCM cover No. 2 2 PCM - Install in the reverse order of removal.
- When replacing the PCM on the vehicles, perform the following:
- PCM configuration (See PCM CONFIGURATION .)
- Immobilizer system-related parts programming (See IMMOBILIZER SYSTEM-RELATED PARTS PROGRAMMING .)
