2016 Mazda 5 GS, Automatic TransFACTORY OEM SERVICE PROCEDURE
Clutch Pedal Position (CPP) Switch Inspection: Notes
- Verify that the CPP switch is installed properly.
- Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION .)
- Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION .)
- Disconnect the CPP switch connector.

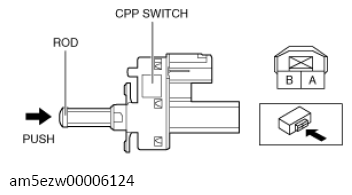

- Inspect for continuity between CPP switch terminals A and B.
- If not as specified, replace the CPP switch. (See CLUTCH PEDAL POSITION SWITCH REMOVAL/INSTALLATION [G66M-R] .)
