2014 Mazda 5 TouringFACTORY OEM SERVICE PROCEDURE
Transaxle Range (Tr) Switch Removal/Installation: Notes
CAUTION:
- Do not allow foreign material or water to penetrate the connector. Otherwise, it could cause poor contact and corrosion.
- Apply the parking brake firmly, and set the wheel blocks for both the front and rear wheels.
- Shift the selector lever to the N position.
- Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION .)
- Disconnect the negative battery cable.
- Remove the air cleaner component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)

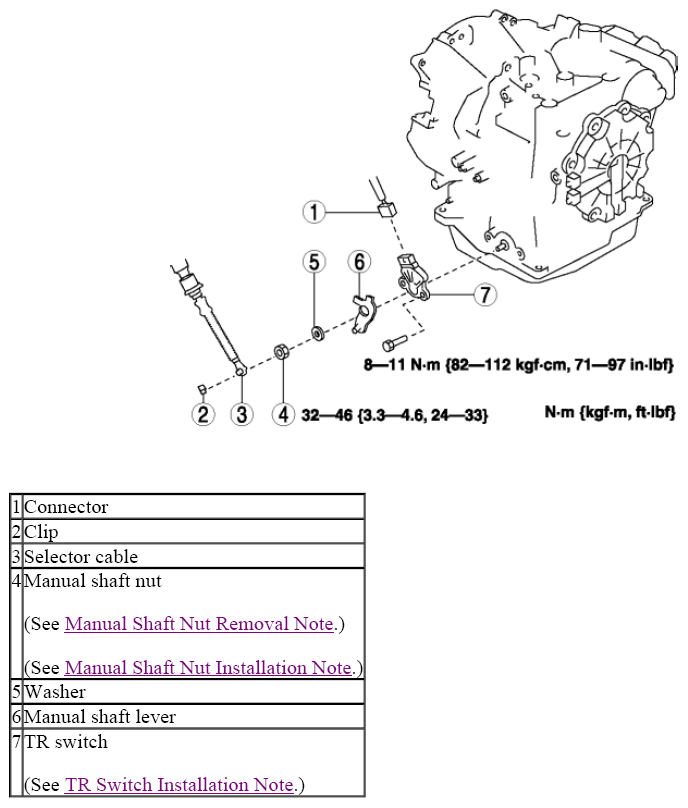

- Remove in the order shown.
- Install in the reverse order of removal.
- Inspect the TR switch. (See TRANSAXLE RANGE (TR) SWITCH INSPECTION .)
