2014 Mazda 5 TouringFACTORY OEM SERVICE PROCEDURE

TCM Removal/Installation

CAUTION:

Do not impact or touch the projection on the back of the TCM. Otherwise, the TCM may not operate normally.
Do not allow foreign material or water to penetrate the connector. Otherwise, it could cause poor contact and corrosion.

Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION .)
Disconnect the negative battery cable.
Remove the battery. (See BATTERY REMOVAL/INSTALLATION .)
Remove the battery tray. (See BATTERY REMOVAL/INSTALLATION .)
Remove in the order shown below.
Install in the reverse order of removal.

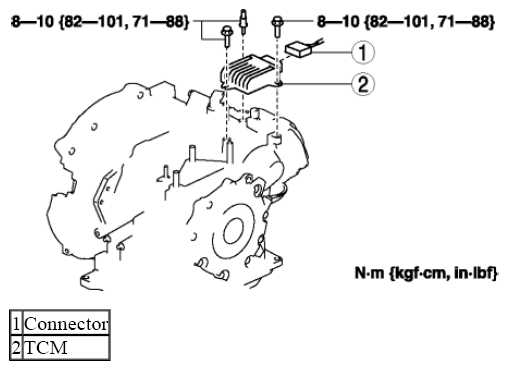

Fig 1: TCM, Connector And Bolts With Torque Specification

Courtesy of MAZDA MOTORS CORP.
