2014 Mazda 5 TouringFACTORY OEM SERVICE PROCEDURE

Transaxle Removal Note

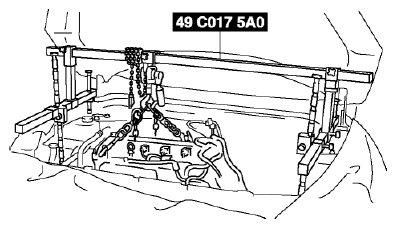

Adjust the SST to tilt the engine to the transaxle side.

Fig 1: Tilting Engine To Transaxle Side
Courtesy of MAZDA MOTORS CORP.
Support the transaxle using a transmission jack.

Fig 2: Supporting Transaxle Using Transmission Jack
Courtesy of MAZDA MOTORS CORP.
Remove the transaxle installation bolts.
Remove the transaxle.
