2014 Mazda 5 TouringFACTORY OEM SERVICE PROCEDURE
Service Cautions: Reassembly

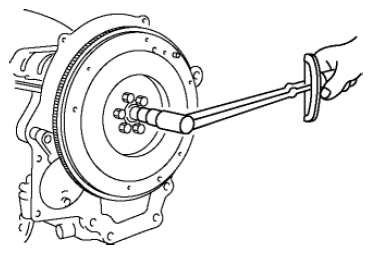

- Standard values, such as torques and certain adjustments, must be strictly observed in the reassembly of all parts.
- If removed, these parts should be replaced with new ones:
| Oil seals | Cotter pins |
| Gaskets | Locknuts (Nylon nuts) |
| O-rings | Spring pins |
| Lock washers | - |
- Depending on location:

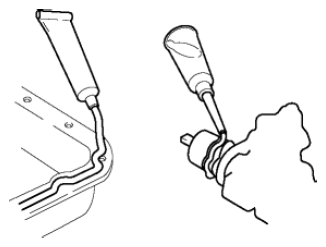

- Sealant and gaskets, or both, should be applied to specified locations. When sealant is applied, parts should be installed before sealant hardens to prevent leakage.
- Oil should be applied to the moving components of parts.
- Specified oil or grease should be applied at the prescribed locations (such as oil seals) before reassembly.
