2014 Mazda 5 TouringFACTORY OEM SERVICE PROCEDURE
Electrical System: Terminals: Replacement

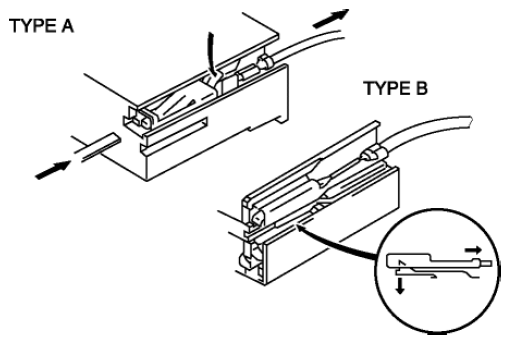

- Use the appropriate tools to remove a terminal as shown. When installing a terminal, be sure to insert it until it locks securely.
- Insert a thin piece of metal from the terminal side of the connector and with the terminal locking tab pressed down, pull the terminal out from the connector.
