2014 Mazda 5 TouringFACTORY OEM SERVICE PROCEDURE

Body Control Module (BCM) Bracket No. 1 Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Dashboard under cover (passenger's side) (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
    2. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    3. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    4. Center console box (See CENTER CONSOLE BOX REMOVAL/INSTALLATION .)
    5. Console panel (See CONSOLE PANEL REMOVAL/INSTALLATION .)
    6. Center console (See CENTER CONSOLE REMOVAL/INSTALLATION .)
    7. Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [G66M-R] .)
    8. Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    9. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    10. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
    11. Side panel (See SIDE PANEL REMOVAL/INSTALLATION .)
    12. Front scuff plate (passenger's side) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    13. Front side trim (passenger's side) (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    14. Lower panel (passenger's side) (See LOWER PANEL REMOVAL/INSTALLATION .)
    15. BCM (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION .)

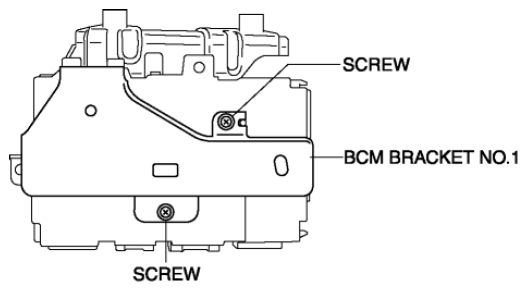

  3. Remove the screws as shown.
    Fig 1: Identifying Body Control Module (BCM) Bracket No. 1 And Screws
    G08153625Courtesy of MAZDA MOTORS CORP.

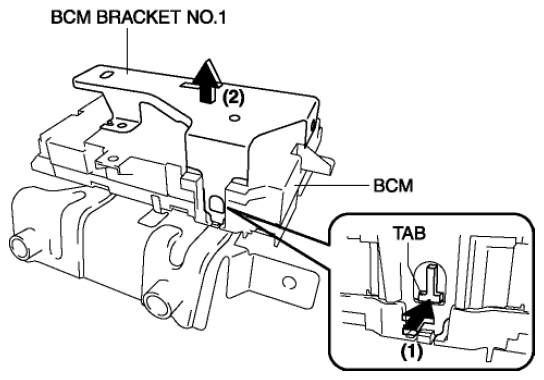

  4. Press and release the tab in the direction of arrow (1) as shown below, and pull BCM bracket No. 1 in the direction of arrow (2) shown below to remove it from the BCM.
    Fig 2: Identifying Tab Releasing Direction And BCM Bracket No. 1 Pulling Direction
    G08153626Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
