2014 Mazda 3 SV, Automatic TransFACTORY OEM SERVICE PROCEDURE
Rear Abs Wheel-Speed Sensor Removal/Installation: Notes
WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the following parts:
- Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
- Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION .)
- Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION
- Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)

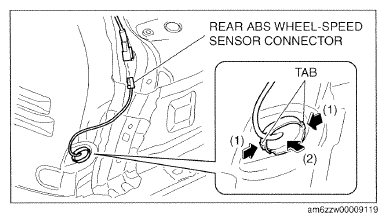

- Disconnect the rear ABS wheel-speed sensor connector.
- Press the rear ABS wheel-speed sensor tabs and press out the sensor toward the outside of the vehicle.
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- After installation, verify that there is no twisting in the rear ABS wheel-speed sensor.
