2014 Mazda 3 SV, Automatic TransFACTORY OEM SERVICE PROCEDURE

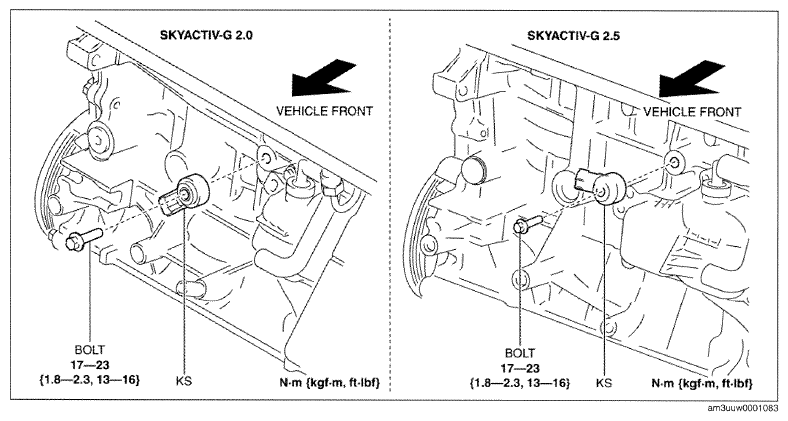

Knock Sensor (KS) Removal/Installation: Notes
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
- Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
- Remove the intake manifold. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
- Disconnect the KS connector.
- Remove the KS.
- Install in the reverse order of removal. (See KS INSTALLATION NOTE (SKYACTIV-G 2.0) .) (See KS INSTALLATION NOTE (SKYACTIV-G 2.5) .)
