2014 Mazda 3 SV, Automatic TransFACTORY OEM SERVICE PROCEDURE
ECT Sensor No. 2
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
- Lift up the vehicle.
- Remove the front under cover No. 1. (See FRONT UNDER COVER NO. 1 REMOVAL/INSTALLATION .)
- Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
- Disconnect the ECT sensor No. 2 connector.

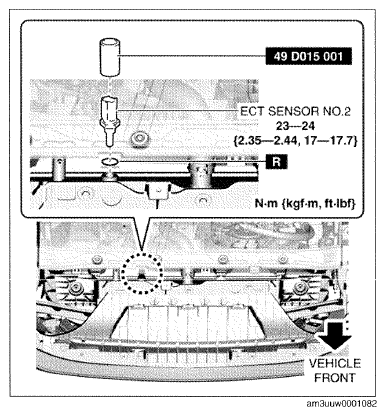

- Remove the ECT sensor No. 2 using the SST .
- Install in the reverse order of removal.
- Refill the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
