2014 Mazda 3 SV, Automatic TransFACTORY OEM SERVICE PROCEDURE

Brake Pipe Installation Note

Align the marks made before removal and install the brake pipe to the DSC HU/CM and brake pipe joint referring to the figure.
Tighten the brake pipe to the specified torque using the commercially available flare nut wrench.

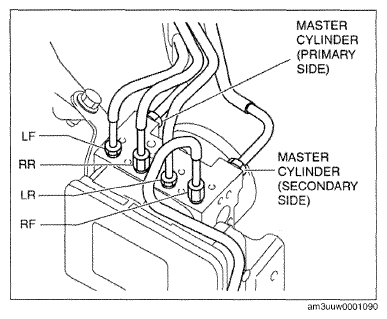

Fig 1: Brake Pipe Nut
Courtesy of MAZDA MOTORS CORP.
