2013 Mazda MX-5 Miata Grand Touring, Automatic Trans

Circuit Open/Short inspection

2013 Mazda MX-5 Miata Grand Touring, Automatic TransSECTION Circuit Open/Short inspection

Inspect the following wiring harnesses for an open or short circuit (continuity check).
Open circuit
- If there is no continuity, the circuit is open. Repair or replace the harness.
  - Fuel pump unit terminal D and body ground

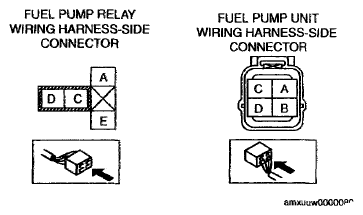

  Fig 1: Fuel Pump Relay Connector
  Courtesy of MAZDA MOTORS CORP.
