2013 Mazda MX-5 Miata Grand Touring, Automatic TransFACTORY OEM SERVICE PROCEDURE
On-Board System Readiness Tests Access Procedure

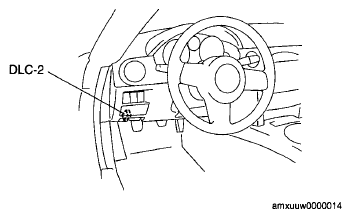

- Connect the M-MDS to the DLC-2.
- After the vehicle is identified, select the following items from the initialization screen of the M-MDS.
- When using the IDS (laptop PC)
- Select "Powertrain".
- Select "OBD Test Modes".
- Select "Mode 1 Powertrain Data".
- Select "PCM".
- When using the PDS (Pocket PC)
- Select "OBD 11 Modes".
- Select "Mode 1 Powertrain Data".
- Select "PCM".
- When using the IDS (laptop PC)
- Then, select the "***SUP" and "**EVAL" PIDs in the PID selection screen.
- Monitor those PIDs and check it system monitor is completed.NOTE:
- If the on-board system readiness tests are not completed the PCM stores DTC P1000.
