2013 Mazda MX-5 Miata Grand Touring, Automatic TransFACTORY OEM SERVICE PROCEDURE
Pcm Configuration

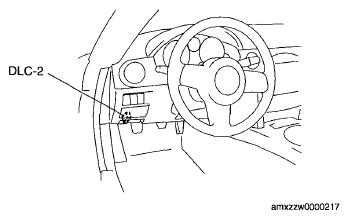

- Connect the M-MDS to DLC-2.
- After the vehicle is identified, select the following items from the initialization screen of the M-MDS.
- When using the IDS (laptop PC)
- Select the "Module Programming".
- When using the PDS (Pocket PC)
- Select "Programming".
- Select "Module Programming".
- When using the IDS (laptop PC)
- Then, select items from the screen menu in the following order.
- Select "Programmable Module Installation".
- Select "PCM".
- Perform the configuration according to the directions on the screen.
- Retrieve DTCs by the M-MDS, then verify that there is no DTC present.
- If a DTC(s) is detected, perform the applicable DTC inspection. (See DTC TABLE ).
