2013 Mazda MX-5 Miata Grand Touring, Automatic Trans
Resistance Inspection
2013 Mazda MX-5 Miata Grand Touring, Automatic TransSECTION Resistance Inspection
- Remove the battery cover.
- Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] ).
- Disconnect the MAF/IAT sensor connector.

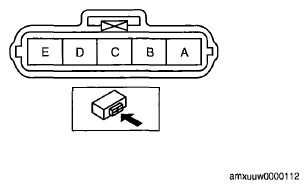

- Verify that the resistance between MAF/IAT sensor terminals D and E is within the specification.
- If the monitor item status/specification (reference) is not within the specification, even though the IAT sensor resistance is within the specification, perform the "Circuit Open/Short Inspection".
- If not within the specification, replace the MAF/IAT sensor. (See MASS AIR FLOW (MAF)/INTAKE AIR TEMPERATURE (IAT) SENSOR REMOVAL/INSTALLATION ).
STANDARD
| Ambient temperature (°C {°F}) | Resistance (kilohm) |
|---|---|
| 20 {68} | 2.21-2.69 |
| 60 {140} | 0.493-0.667 |
