2013 Mazda MX-5 Miata Grand Touring, Automatic Trans

Circuit Open/Short Inspection

2013 Mazda MX-5 Miata Grand Touring, Automatic TransSECTION Circuit Open/Short Inspection

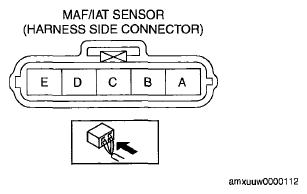

Fig 1: Identifying MAF/IAT Sensor Connector Terminals
G06151076Courtesy of MAZDA MOTORS CORP.
  1. Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION ).
  2. Inspect the following wiring harnesses for an open or short circuit. (Continuity inspection)

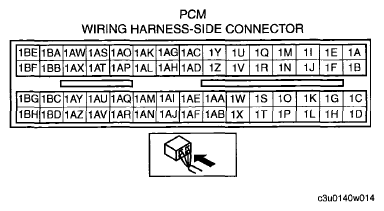

    Fig 2: Identifying PCM Wiring Harness-Side Connector Terminals
    G06151077Courtesy of MAZDA MOTORS CORP.

Open circuit

  • If there is no continuity, there is an open circuit. Repair or replace the wiring harness.
    • MAF/IAT sensor terminal D and PCM terminal 1 AT
    • MAF/IAT sensor terminal E and PCM terminal 1AR

Short circuit

  • If there is continuity, there is a short circuit. Repair or replace the wiring harness.
    • MAF/IAT sensor terminal E and power supply
    • MAF/IAT sensor terminal D and power supply
    • MAF/IAT sensor terminal D and body ground
