2013 Mazda MX-5 Miata Grand Touring, Automatic TransFACTORY OEM SERVICE PROCEDURE

HO2S Circuit Open/Short Inspection

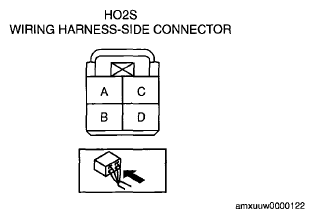

Fig 1: Identifying HO2S Wiring Harness-Side Connector Terminals

Courtesy of MAZDA MOTORS CORP.

Disconnect the PCM connector.
Disconnect the HO2S connector.
Inspect the following wiring harnesses for an open or short circuit. (Continuity inspection)

Fig 2: Identifying PCM Wiring Harness-Side Connector Terminals
Courtesy of MAZDA MOTORS CORP.

Open circuit

If there is no continuity, there is an open circuit. Repair or replace the wiring harness.
- HO2S terminal A and PCM terminal 2Q
- HO2S terminal B and PCM terminal 2BH
- HO2S terminal C and ignition relay
- HO2S terminal D and PCM terminal 2BE

Short circuit

If there is continuity in the following wiring harnesses, there is a short circuit. Repair or replace the wiring harness.
- HO2S terminal A and power supply
- HO2S terminal A and body ground
- HO2S terminal B and power supply
- HO2S terminal B and body ground
- HO2S terminal C and body ground
- HO2S terminal D and power supply
- HO2S terminal D and body ground
