2013 Mazda MX-5 Miata Grand Touring, Automatic TransFACTORY OEM SERVICE PROCEDURE

Circuit Open/Short Inspection

Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION ).
Inspect the following wiring harness for open or short circuit (continuity Inspection).

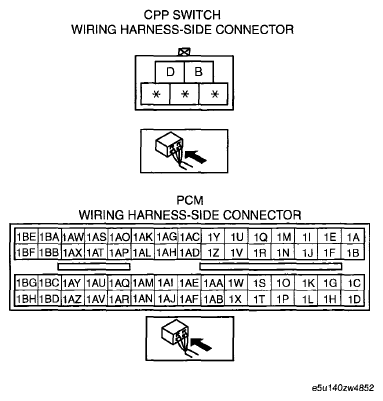

Fig 1: Identifying CPP Switch Wiring Harness-Side Connector Terminals
Courtesy of MAZDA MOTORS CORP.

Open circuit

If there is no continuity, there is an open circuit. Repair or replace the wiring harness.
- CPP switch terminal B and PCM terminal 1D
- CPP switch terminal D and body ground

Short circuit

If there is continuity, there is a short circuit. Repair or replace the wiring harness.
- CPP switch terminal B and body ground
