2013 Mazda MX-5 Miata Grand Touring, Automatic TransFACTORY OEM SERVICE PROCEDURE
Starter Interlock Switch Inspection
CAUTION:
- Do not reuse the starter interlock switch if it is removed from the vehicle even once. Replace with a new starter interlock switch when installing.
- Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [LF] .)
- Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)
- Disconnect the starter interlock switch connector.

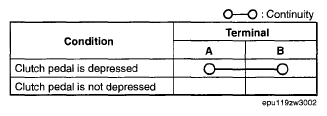

- Verify that the continuity is as indicated in the illustration using a tester.
- If the continuity is not as indicated in the illustration, replace the starter interlock switch. (See CLUTCH PEDAL REMOVAL/INSTALLATION .
