2013 Mazda MX-5 Miata Grand Touring, Automatic Trans
Upper Block Removal/Installation: Notes
2013 Mazda MX-5 Miata Grand Touring, Automatic TransSECTION Notes
- Remove the battery cover.
- Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)
- Remove the main fuse block cover.

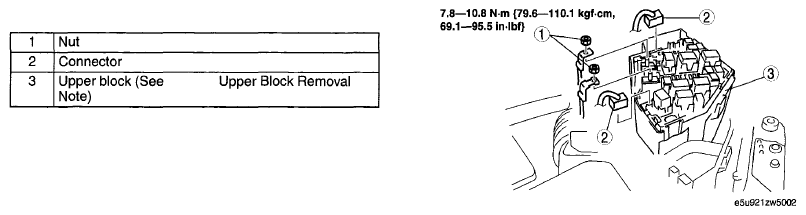

- Remove in the order indicated in the illustration.
- Install in the reverse order of removal.
