Steering Angle Sensor Inspection
- Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION )
- Measure the voltage between steering angle sensor terminal B and ground.
- If there is any malfunction, inspect the wiring harness between steering angle sensor terminal B and battery, then repair or replace if necessary.
Standard voltage B+Â
- If there is any malfunction, inspect the wiring harness between steering angle sensor terminal B and battery, then repair or replace if necessary.
- Turn the ignition switch to the ON position, then measure the voltage between steering angle sensor terminal A and ground.
- If there is any malfunction, inspect the wiring harness between steering angle sensor terminal A and ignition switch, then repair or replace if necessary.
Standard voltage B+Â
- If there is any malfunction, inspect the wiring harness between steering angle sensor terminal A and ignition switch, then repair or replace if necessary.
- Measure the voltage between steering angle sensor terminal H and the ground.
- If there is any malfunction, inspect the wiring harness between steering angle sensor terminal H and ground point, then repair or replace if necessary.
Standard voltage 0VÂ
- If there is any malfunction, inspect the wiring harness between steering angle sensor terminal H and ground point, then repair or replace if necessary.
- Turn the ignition switch to the LOCK position.

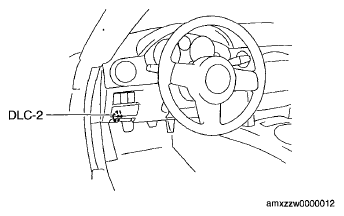

- Connect the M-MDS to the DLC-2.
- Select the "SWA_POS" PID.
- Verify the SWA_POS changes when the steering wheel is turned to the left and right.
- If there is any malfunction, replace the steering angle sensor.
StandardÂ
When the steering wheel is turned to the right: SWA_POS changes positively.Â
When the steering wheel is turned to the left: SWA_POS changes negatively.Â
- If there is any malfunction, replace the steering angle sensor.
