2013 Mazda MX-5 Miata Grand Touring, Automatic TransFACTORY OEM SERVICE PROCEDURE

Power Window Regulator Removal/Installation

Remove the battery cover.
Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] ).
Remove the door trim. (See DOOR TRIM REMOVAL/INSTALLATION ).
Remove the door module panel. (See DOOR MODULE PANEL REMOVAL/INSTALLATION ).
Remove the door glass. (See DOOR GLASS REMOVAL/INSTALLATION ).
Remove the nuts.

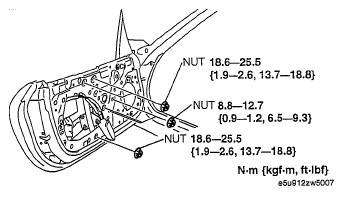

Fig 1: Door Module Panel Nuts With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Remove the power window regulator.
Install in the reverse order of removal.

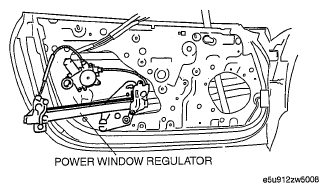

Fig 2: Identifying Power Window Regulator
Courtesy of MAZDA MOTORS CORP.
