2013 Mazda MX-5 Miata Grand Touring, Automatic Trans
Power Outer Mirror Disassembly/Assembly: Notes
2013 Mazda MX-5 Miata Grand Touring, Automatic TransSECTION Notes

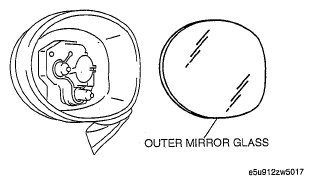

- Remove the outer mirror glass. (See OUTER MIRROR GLASS DISASSEMBLY NOTE ). (See OUTER MIRROR GLASS ASSEMBLY NOTE ).
- Assemble in the reverse order of disassembly.
