2013 Mazda MX-5 Miata Grand Touring, Automatic TransFACTORY OEM SERVICE PROCEDURE
Keyless Control Module Configuration

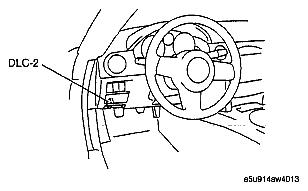

- Connect the M-MDS to the DLC-2.
- After the vehicle is identified, select the following items from the initialization screen of the M-MDS.
- When using the IDS (laptop PC)
- Select "Module Programming".
- When using the PDS (Pocket PC)
- Select "Programming".
- Select "Module Programming".
- When using the IDS (laptop PC)
- Then, select the "Programmable Module Installation" and "RKE" from the screen menu.
- Perform the configuration according to the directions on the screen.
- Retrieve DTCs using the M-MDS, then verify if DTCs are present.
- If a DTC is present, perform the applicable DTC inspection. (See DTC TABLE [ADVANCED KEYLESS AND START SYSTEM] )
