2013 Mazda CX-5 Touring, FWDFACTORY OEM SERVICE PROCEDURE

No.2 Check Engine Light Illuminates: Notes

DESCRIPTION & POSSIBLE CAUSE

2	CHECK ENGINE LIGHT ILLUMINATES
DESCRIPTION	Check engine light illuminates incorrectly.

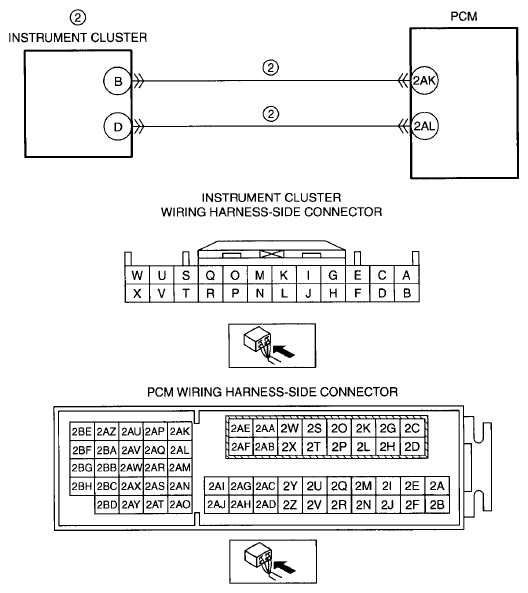

POSSIBLE CAUSE	Check engine light illuminates for emission-related concern (DTC is stored in PCM) Short to ground in wiring harness between the following terminals: Instrument cluster terminal B-PCM terminal 2AK Instrument cluster terminal D-PCM terminal 2AL Open circuit in wiring harness between the following terminals: Instrument cluster terminal B-PCM terminal 2AK Instrument cluster terminal D-PCM terminal 2AL Instrument cluster malfunction NOTE: If check engine light blinks at a steady rate, a misfire condition could possibly exist.
