2013 Mazda CX-5 Touring, FWDFACTORY OEM SERVICE PROCEDURE
Fuel Pump Control Module Removal/Installation
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0] ).
- Tip the rear seat (LH).
- Disconnect the clip connected to trunk board.
- Disconnect the fuel pump control module connector.
- Remove the fuel pump control module.
- Install the fuel pump control module using the following procedure.

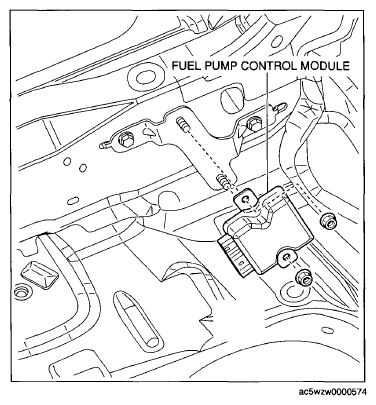

- Insert the bracket tabs into the installation holes in the order shown in the figure.
