2013 Mazda CX-5 Touring, FWDFACTORY OEM SERVICE PROCEDURE
ECT Sensor No.2
- Remove the ECT sensor No.2. (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION ).
- Place the ECT sensor No.2 in water with a thermometer, and heat the water gradually.

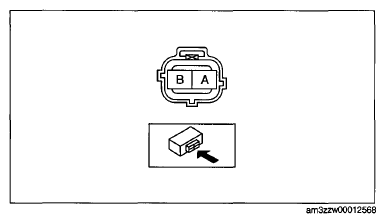

- Measure the resistance between ECT sensor No.2 terminals A and B.
- If not as specified, replace the ECT sensor No.2. (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION ).
RESISTANCE SPECIFICATION
| ECT (°C {°F}) | Resistance (Kilohms) |
|---|---|
| 20 {68} | Approx. 2.45 |
| 80 {176} | Approx. 0.318 |
