2013 Mazda CX-5 Touring, FWDFACTORY OEM SERVICE PROCEDURE
Rear Abs Wheel-Speed Sensor Removal/Installation: Notes
- Remove the trunk board. (See TRUNK BOARD REMOVAL/INSTALLATION ).
- Remove the trunk end trim. (See TRUNK END TRIM REMOVAL/INSTALLATION ).
- Remove the rear scuff plate. (See REAR SCUFF PLATE REMOVAL/INSTALLATION ).
- Remove the trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION ).
- Disconnect the rear ABS wheel-speed sensor connector.

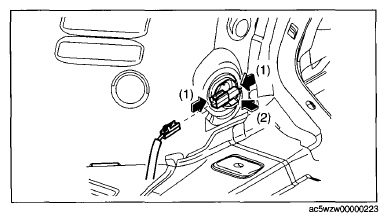

- Press the rear ABS wheel-speed sensor tabs and press out the sensor toward the outside of the vehicle.
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- After installation, verify that there is no twisting in the rear ABS wheel-speed sensor.
