2013 Mazda CX-5 Touring, FWDFACTORY OEM SERVICE PROCEDURE

Front Abs Wheel-Speed Sensor Removal/Installation

Remove the mudguard. (See MUDGUARD REMOVAL/INSTALLATION ).
Remove in the order indicated in the table.
Install in the reverse order of removal.
After installation, verify that there is no twisting in the front ABS wheel-speed sensor.

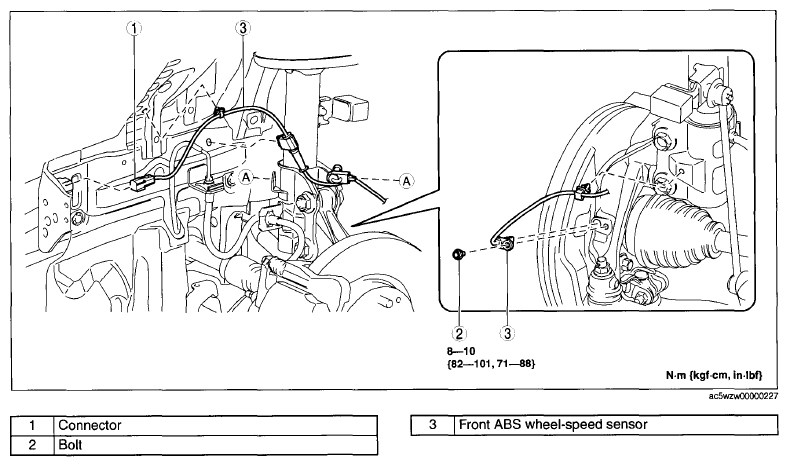

Fig 1: Front ABS Wheel Speed Sensor, Connector And Bolt With Torque Specification
