2013 Mazda 5 TouringFACTORY OEM SERVICE PROCEDURE

DSC Off Switch Removal/Installation

  1. Remove the driver-side front scuff plate. (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
  2. Remove the driver-side front side trim. (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
  3. Remove the side wall. (See SIDE WALL REMOVAL/INSTALLATION .)
  4. Remove the center console box. (See CENTER CONSOLE BOX REMOVAL/INSTALLATION .)
  5. Remove the console panel. (See CONSOLE PANEL REMOVAL/INSTALLATION .)
  6. Remove the center console. (See CENTER CONSOLE REMOVAL/INSTALLATION .)
  7. Remove the shift lever knob. (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [G66M-R] .)
  8. Remove the selector lever knob. (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
  9. Remove the shift panel. (See SHIFT PANEL REMOVAL/INSTALLATION .)
  10. Remove the front console. (See FRONT CONSOLE REMOVAL/INSTALLATION .)
  11. Remove the hood release lever. (See HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION .)
  12. Remove the lower panel. (See LOWER PANEL REMOVAL/INSTALLATION .)

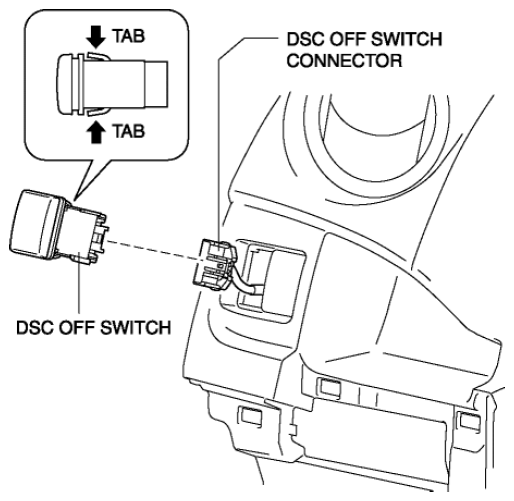

  13. While squeezing the tabs of the DSC OFF switch, pull the DSC OFF switch outward to remove it from the lower panel.
    Fig 1: Pulling DSC OFF Switch Outward
    G08150698
  14. Install in the reverse order of removal.
