2013 Mazda 3 Mazdaspeed, 2.3L Eng VIN 3
Dynamic Stability Control Sensor Initialization Procedure
2013 Mazda 3 Mazdaspeed, 2.3L Eng VIN 3SECTION Dynamic Stability Control Sensor Initialization Procedure
WARNING:
- If the DSC sensor initialization procedure is not completed, the DSC will not operate properly and it might cause an unexpected accident. Therefore, after replacing or removing the DSC HU/CM or SAS control module, make sure to perform the DSC sensor initialization procedure to insure proper DSC operation.
- Inspect the wheel alignment and the tire pressure.
- If there is any malfunction, adjust the applicable part.
- Position the vehicle on level ground.
- Switch the ignition to off.

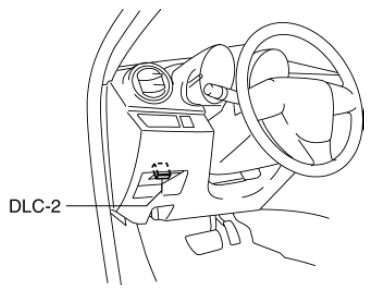

- Connect the M-MDS (IDS) to DLC-2.
- After the vehicle is identified, select the following items from the initial screen of the IDS.
- Select "Chassis".
- Select "ABS/DSC".
- Select "Sensor Initialization".
- Perform the procedure according to the directions on the screen.
- Drive the vehicle.
- After 5 min or more of driving, verify that the DSC system is normal.
