2012 Mazda Mazdaspeed3 L4-2.3L TurboFACTORY OEM SERVICE PROCEDURE
Fuel Pressure Sensor: Testing and Inspection
FUEL PRESSURE SENSOR INSPECTION [MZR 2.3 DISI Turbo]
PID Inspection
NOTE:
- If the fuel pressure sensor is removed, do not reuse the fuel pressure sensor and the fuel delivery pipe. When you replace the fuel pressure sensor, replace a new fuel delivery pipe with a new fuel pressure sensor.
1. Connect the M-MDS to the DLC-2.
2. Switch the ignition to ON.
3. Warm up the engine to normal operating temperature.
4. Access the FUEL_PRES PID using the M-MDS. On-Board Diagnostic Test

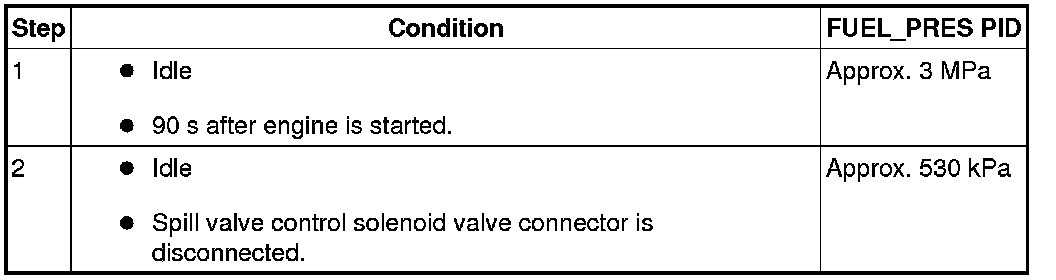

5. Verify that the FUEL_PRES PID is at the standard value under the following conditions.
- If not as verified, replace the fuel delivery pipe. Service and Repair
6. Reconnect the spill valve control solenoid valve connector.
7. Clear the DTC using the M-MDS. On-Board Diagnostic Test
