CONTROL SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE

Using M-MDS

NOTE:
- Use the IDS (laptop PC) because the PDS (Pocket PC) does not support the PERSONALIZATION FEATURES SETTING PROCEDURE.

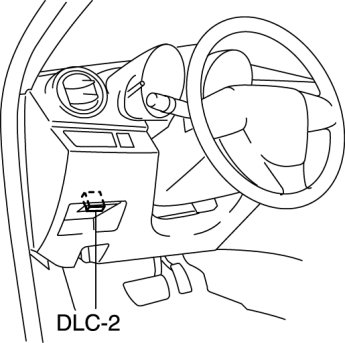

1. Connect the M-MDS to DLC-2.

2. After the vehicle is identified, select the following items from the initial screen of the M-MDS.

- When using the IDS (laptop PC)

- Select the "Module Programming".

3. Then, select items from the screen menu in the following order.

- Select "Programmable Parameters".
- Select "Personality", "Interior lighting", "Washer/ Wiper", "Security" or "Power Door Locks".

4. Select an item name, and then select option.

Items of "Personality"

Items of "Interior lighting"

Items of "Washer/ Wiper"

Items of "Security"

Items of "Power Door Locks"

Applied VIN (assumed):
- JM3 ER2W3*A# 300001-300162
- JM3 ER2W5*A# 300001-300162
- JM3 ER2WL*A# 300001-300162
- JM3 ER2WM*A# 300001-300162
- JM3 ER4W3*A# 300001-300162
- JM3 ER4WL*A# 300001-300162

Not Using M-MDS

Applied VIN (assumed):

- JM3 ER2W3*A# 300001-300162
- JM3 ER2W5*A# 300001-300162
- JM3 ER2WL*A# 300001-300162
- JM3 ER2WM*A# 300001-300162
- JM3 ER4W3*A# 300001-300162
- JM3 ER4WL*A# 300001-300162

Auto door lock system

Setting procedure
